Physics-Based Thermal Signature Simulation for Aerospace & Defense
Optimize Multi-Spectral Signatures For Mission Success
In the modern defense sector, achieving a balance between low observability, mission readiness, and vehicle or occupant survivability requires more than just standard calculations. ThermoAnalytics provides the professional-grade simulation ecosystem necessary to predict complex infrared signatures, transient thermal management, and human physiological response within extreme operating environments.
How ThermoAnalytics Empowers
Aerospace & Defense Engineering
Thermal challenges in defense platforms are deeply interdependent; propulsion heat impacts sensor accuracy, high-altitude environments dictate structural cooling, and power-dense electronics affect mission endurance. Every thermal decision influences the overall signature and survivability of the asset. ThermoAnalytics helps you navigate this high-stakes complexity by simulating transient thermal behavior in contested environments early in the design cycle. This provides engineering teams the high-fidelity clarity needed to optimize stealth, ensure mission-critical reliability, and eliminate the risks of multi-spectral detection.

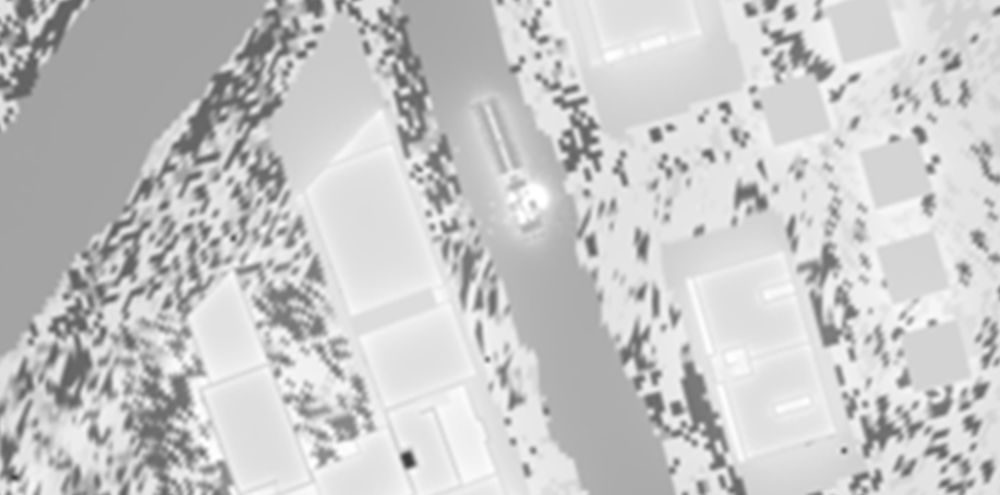

Ground Vehicle Stealth & Survivability
In modern ground warfare, thermal visibility is often the difference between mission success and failure. MuSES allows defense engineers to analyze the “thermal contrast” between a vehicle and its background. By simulating different terrains, such as asphalt, sand, or forest, engineers can predict how a vehicle’s signature changes throughout a 24-hour cycle.
Heat Shield Optimization
Identifies where heat shields or insulation can most effectively mask engine and exhaust heat.
Camouflage Effectiveness
Tests the performance of thermal paints and multi-spectral camouflage nets under different lighting conditions.
Exhaust Suppression
Uses RapidFlow to model the impact of diffusing exhaust gases to blend the vehicle’s signature with the background.
Thermal Contrast Reduction
Predicts when a vehicle will become “invisible” to a sensor by matching the background radiance.
Aerospace & Aircraft Signature Management
Managing the infrared signature of an aircraft involves balancing aerodynamic heating with the intense thermal energy of the propulsion system. MuSES provides the high-fidelity tools needed to calculate the “apparent brightness” of an airframe against the cold sky or complex earth backgrounds. It accounts for the bidirectional reflectance of specialized coatings and the internal “cavity radiation” from engine intakes and nozzles

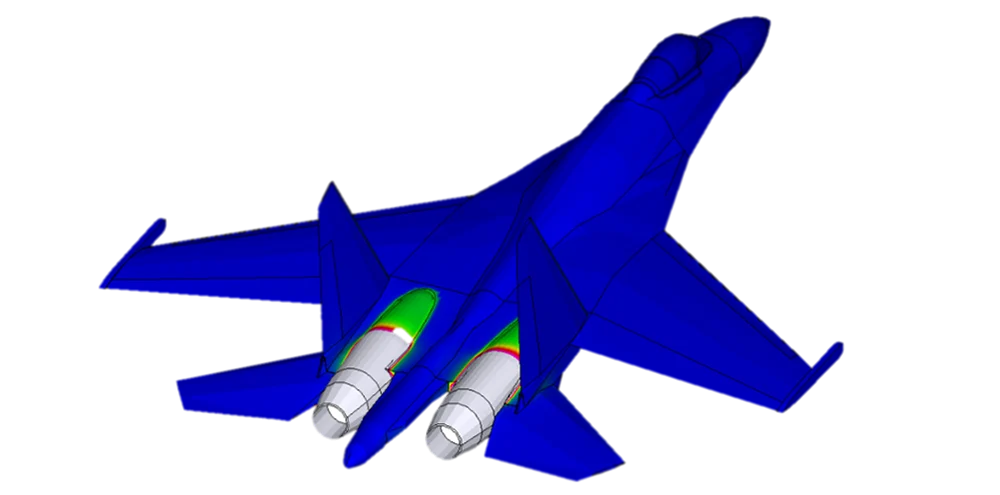

Nozzle & Tailpipe Design
Evaluates the IR impact of different nozzle geometries and cooling bypass systems.
High-Altitude Physics
Models the unique thermal environment of high altitudes, including low air density and intense solar radiation.
Flares and Countermeasures
Simulates the deployment of decoys to analyze their effectiveness in distracting tracking sensors.
Skin Friction Heating
Accounts for aerodynamic heating of the airframe at high velocities and its contribution to the signature.

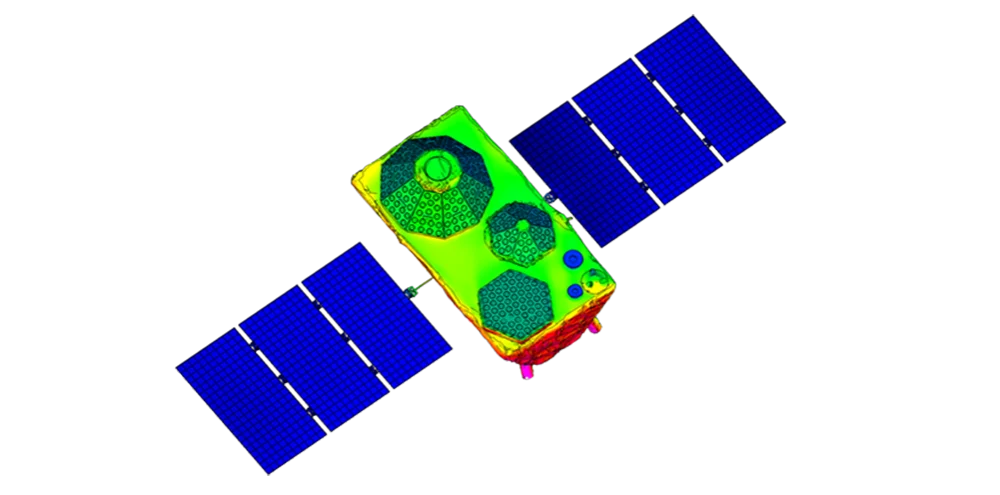

Satellite Thermal Management:
In the vacuum of space, radiation is the only mode of heat rejection. MuSES is uniquely equipped to handle the extreme “sun-to-shade” transitions that satellites experience in orbit. It allows engineers to model the effectiveness of Multi-Layer Insulation and radiators while accounting for the thermal influence of the Earth and the deep cold of space.
Orbital Thermal Cycles
Simulates the rapid transition from direct solar radiation to the cold soak of the Earth’s shadow.
Internal Component Management
Tracks the heat dissipation from onboard electronics and its impact on sensitive optical sensors.
Multi-Layer Insulation (MLI)
Models the performance of highly reflective vacuum-insulation blankets used in space.
Cryogenic Cooler Modeling
Analyzes the thermal environment for cooled sensors to ensure they maintain operational temperatures.

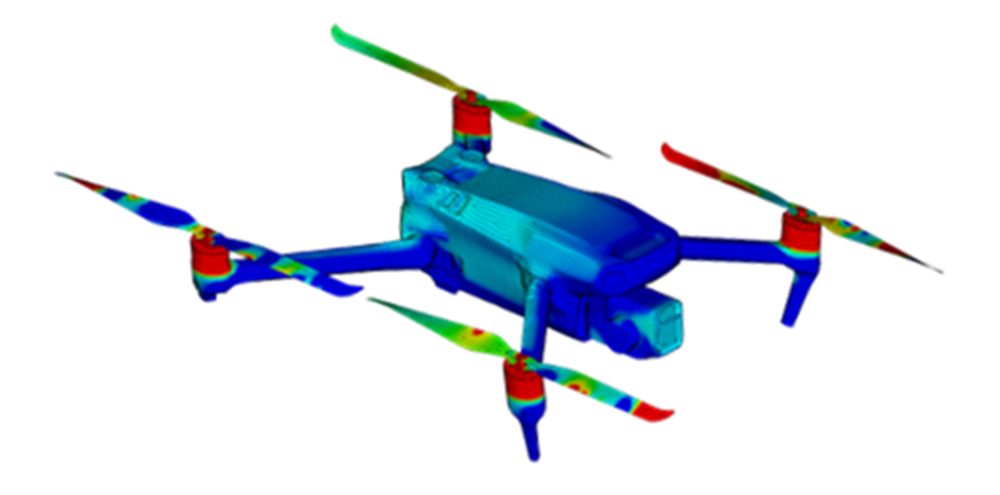

Unmanned Aerial Systems & Drones
As drones take on more reconnaissance and surveillance roles, their own thermal footprint becomes a vulnerability. MuSES helps designers optimize the placement of small, high-heat components like electric motors, batteries, and transmitters. It also simulates the drone’s “own-ship” sensor view, allowing engineers to test the detection range of the onboard cameras under various atmospheric conditions.
Motor & Battery Cooling
Analyzes the heat signature of electric motors and high-discharge battery packs.
Composite Material Modeling
Predicts the thermal behavior of carbon fiber and plastic airframes under solar load.
Reconnaissance Performance
Simulates the drone’s own sensor view to optimize the height and angle for maximum detection capability.

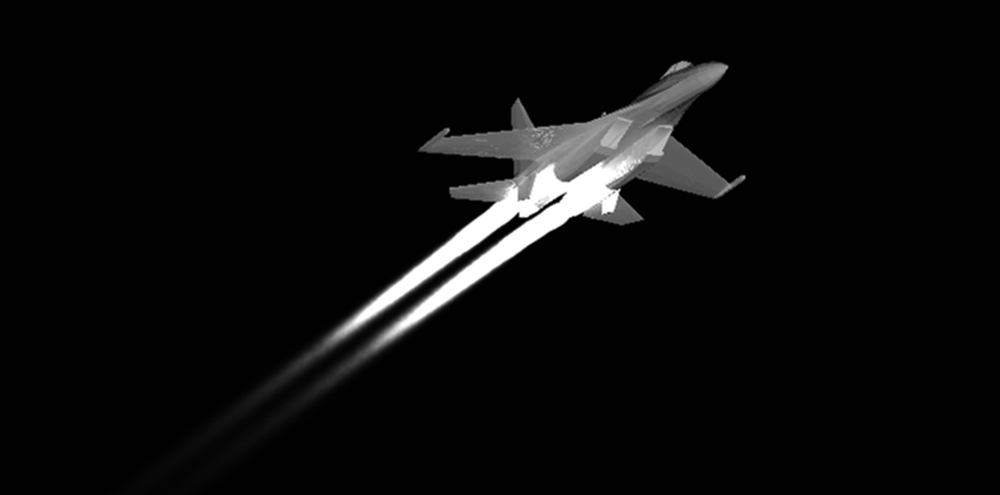

Plume Radiation & Signature Analysis
The exhaust plume of a gas turbine or rocket motor is often the most prominent infrared feature of an aerospace or defense asset. MuSES allows for the high-fidelity simulation of both the gaseous emission and the “searchlight effect,” where the hot internal cavity of the nozzle reflects off the plume or illuminates the airframe. By coupling fluid data with spectral radiation models, engineers can accurately predict the signature across the mid-wave (MWIR) and long-wave (LWIR) bands.
Spectral Emission Modeling
Accounts for the specific molecular emission lines of exhaust gases to determine the plume’s radiance against a cold sky.
Exhaust Mixing & Temperature Decay
Integrates with RapidFlow or external CFD to model how the mixing of ambient air and exhaust bypass reduces the thermal intensity of the plume.
Internal Cavity Reflection
Simulates the complex “row of mirrors” effect where high-temperature internal components contribute to the overall signature seen from the rear aspect.
Plume Masking & Shielding
Evaluates the effectiveness of structural shields or specialized nozzle geometries in physically obscuring the hottest regions of the exhaust flow.
Aerospace & Defense Tools for Thermal Modeling
Different teams use our tools in different ways. These are the products most commonly used across applications and industries.
Simulate real-world thermal behavior across complete systems with validated, multiphysics accuracy.
Automate, orchestrate, and streamline multiphysics simulation workflows across tools and teams.
Product Extensions
Human Thermal Extension
Predict real human comfort and physiology—not just PMV.
